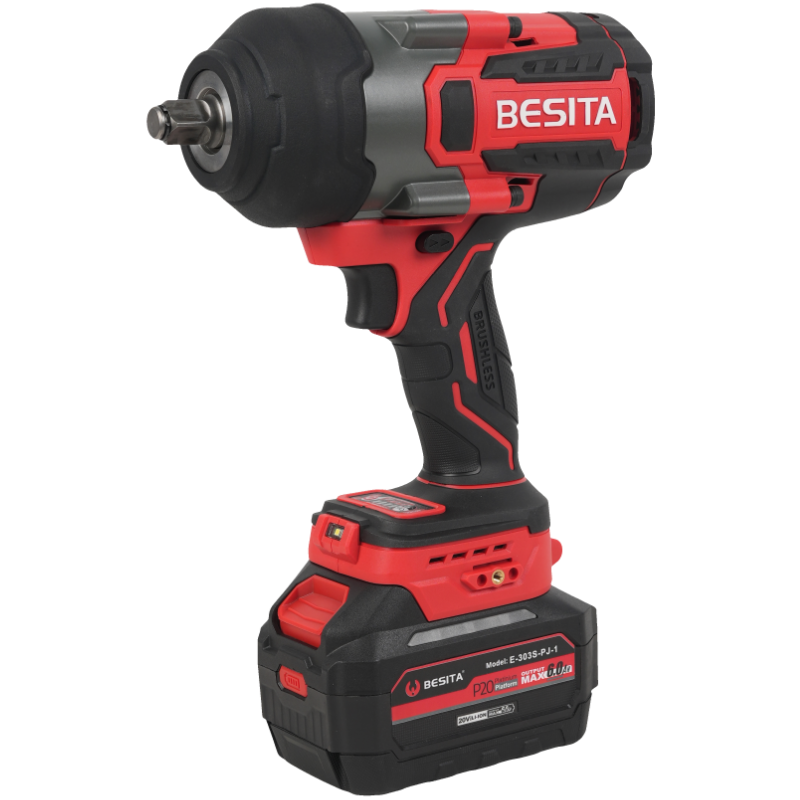

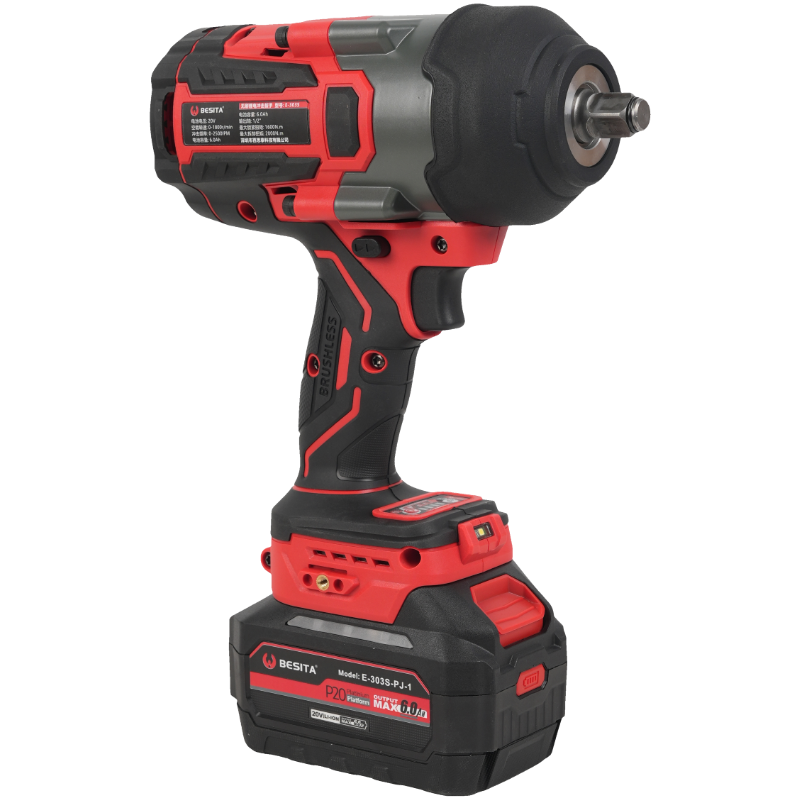

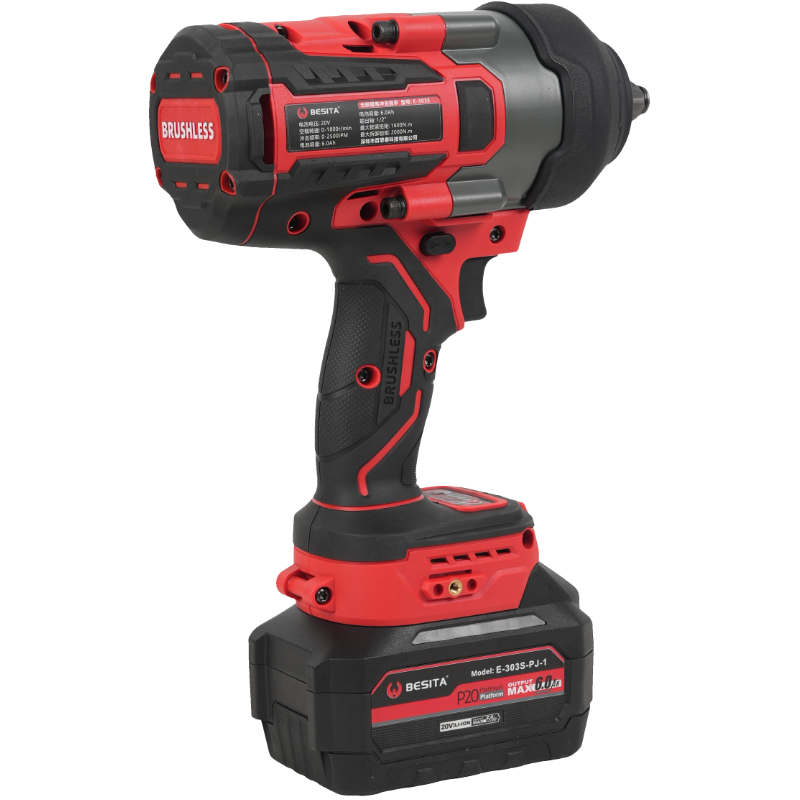

1600N.m 20V Brushless Lithium Battery Impact Wrench

1. Rated Voltage: DV20V

2. No-load Current: ≤7A; Maximum Load Current: 70A; Rated Power: 1400W

3. Stepless Speed ​​Control Switch

4. 4-speed forward torque: 900/1050/1350/1600 N.m

5. 4-speed disassembly torque: 1050/1200/1450/2000 N.m

6. 4-speed no-load speed: 0-950/1150/1400/1800 rpm; Low-speed 6.0Ah battery pack no-load time ≥160min, high-speed no-load time ≥65min

7. 4-speed impact frequency: 0-1900 /2200/2400/2500 IPM

8. Tighten and loosen the nuts with a 36mm socket for 3 seconds. For a 6AH battery, tightening 80 I24 nuts and loosening 100 nuts takes 31 minutes.

9. Charger output current: 4.0A, charging time: ≤100min

10. Working capacity: M16-30 high-strength bolts

11. Bare unit: 3.2KG + Battery pack: 4KG

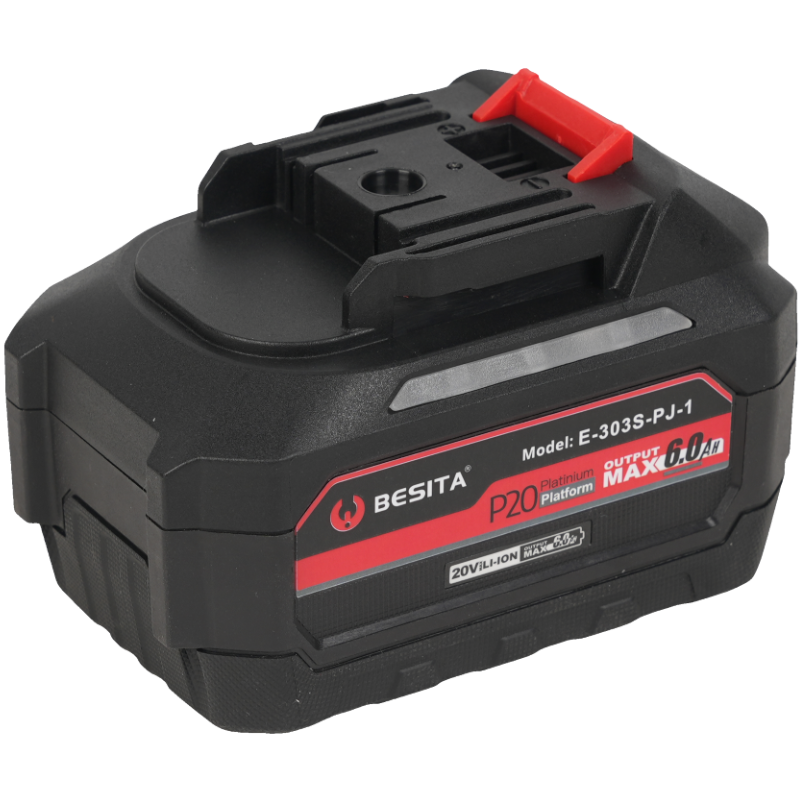

12. Battery specifications: 6.0Ah 18650X15, 2000mAh 15C, battery life ≥300 cycles, Tianpeng brand cells

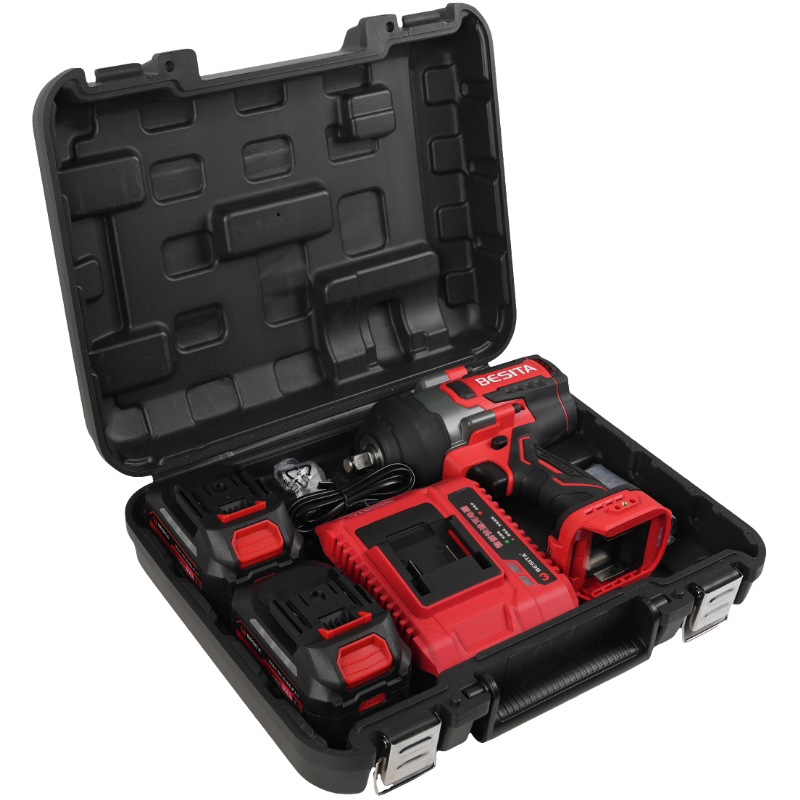

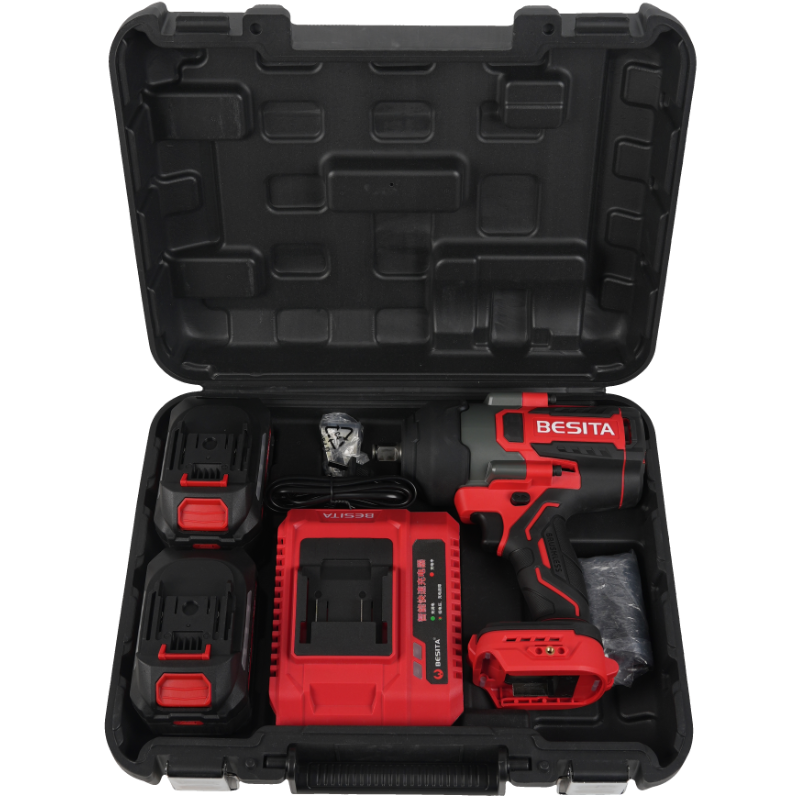

13. Standard package includes: 1 main unit, 2 6.0AH battery packs, 1 4.0A output current charger, 1 instruction manual; color box/plastic carton packaging.

Torque Warrior, Powerful Performance; Enduring Design, Heartfelt Craftsmanship

1. International Brand Design: Compact design and lighter weight compared to pneumatic impact wrenches, ideal for operation in confined spaces. Adaptable to various scenarios, including automotive repair, power, infrastructure, railway, shipbuilding, and large equipment installation, solving pain points for technicians and improving work efficiency and reducing labor intensity.

2. High-power brushless motor provides superior power, with output torque exceeding that of comparable products in the industry, and a reverse torque of 1700 N·m.

3. Long service life, maintenance-free, high efficiency, domestic brand battery cells, and long battery life. The intelligent controller features 13 safety protections for enhanced safety and peace of mind, including protection against overcurrent, overcharge, overheating, over-discharge, overvoltage, overcurrent, short circuit, and undervoltage. It can operate continuously under no-load for more than 85 minutes.

4. High-quality precision-machined new striking block structure; high-quality thickened transmission gears, tungsten steel output shaft, quenching process, providing wear resistance, ensuring high torque output, and extending service life.

5. Imported stepless speed control switch, 50,000 start-stop test, far exceeding the lifespan of ordinary switches on the market, easy to adjust and operate, ergonomic soft-padded handle for a more comfortable grip.

6. User-friendly design with LED lighting, not afraid of the dark; ergonomic soft-padded handle for a more comfortable grip.
