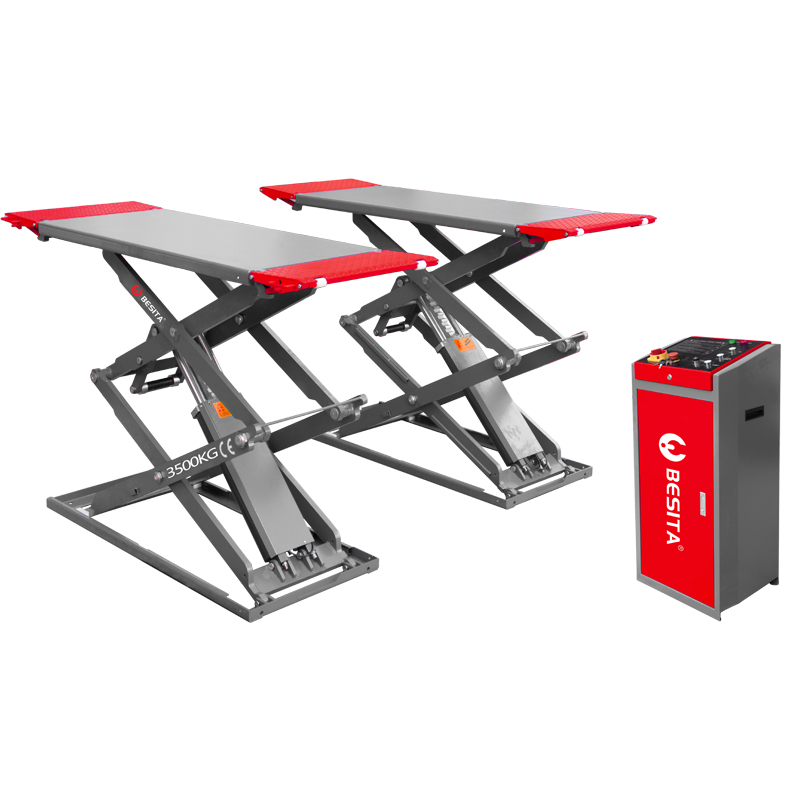

3.5T Ultra thin Small Scissor Lift

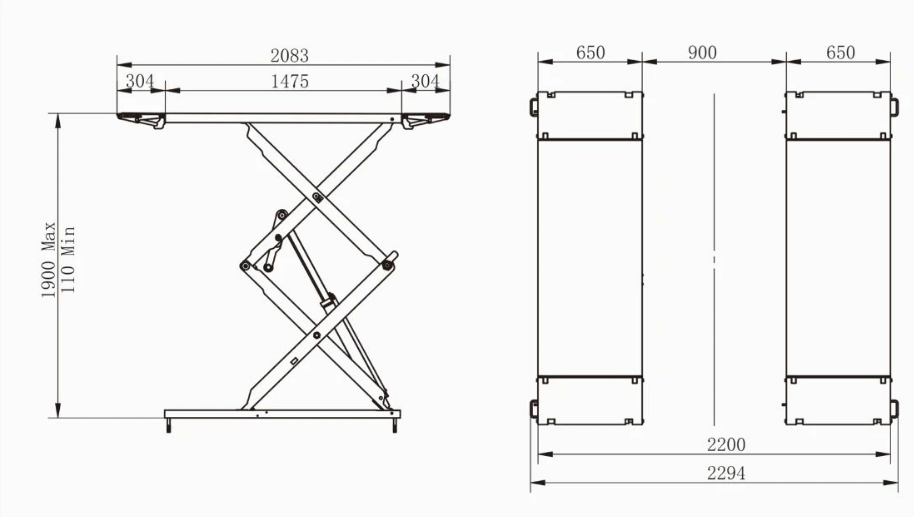

Maximum lifting weight: 3500kg
Maximum lifting height: 1900mm
Upper table width: 650mm
Upper table spacing: 900mm
Total platform width: 2200mm
Upper table length: 1475mm
Total platform length: 2083mm
Platform initial height: 110mm

●Rated load 3500kg, easily passed 120% dynamic and 150% static load professional test standards.
●Large diameter four sets of two sets of hydraulic volume synchronous cylinders, the platform runs synchronously and smoothly, and can effectively increase the service life of hydraulic components.
●Adopting hidden scissor-type super-full structure, the minimum height of the machine is only 110mm, no construction pit is required, small space is occupied, and it is more suitable for low-chassis vehicles.
●Liftable extension platform design, range 1475-2083mm, suitable for more wheelbase vehicles.
●Independent control box, low-voltage 24V safety electronic control system, good safety performance.
●With hydraulic lock and mechanical tooth safety claw dual safety insurance device, safe and reliable.
(optional with automatic leveling function)
●With hydraulic failure and overload safety valve protection and anti-pipe explosion device, the machine will not fall quickly when the oil pipe bursts.
●The machine descending control cabinet is equipped with signal alarm to ensure the safety of the machine operator and surrounding personnel.
●Adopt oil-free polymer super wear-resistant material sliding block, long service life, stable and reliable operation.
●Adopt high-quality hydraulic and electrical components from Italy, Germany, Japan, etc.
●Equipped with a manual descending device in case of power failure.
●Main structural parts are welded by robots, with good welding consistency, high strength and beautiful welds.
●Structural parts are sprayed with imported powder, sprayed with imported spraying equipment and cured at high temperature, which can ensure strong adhesion and bright and beautiful colors.
