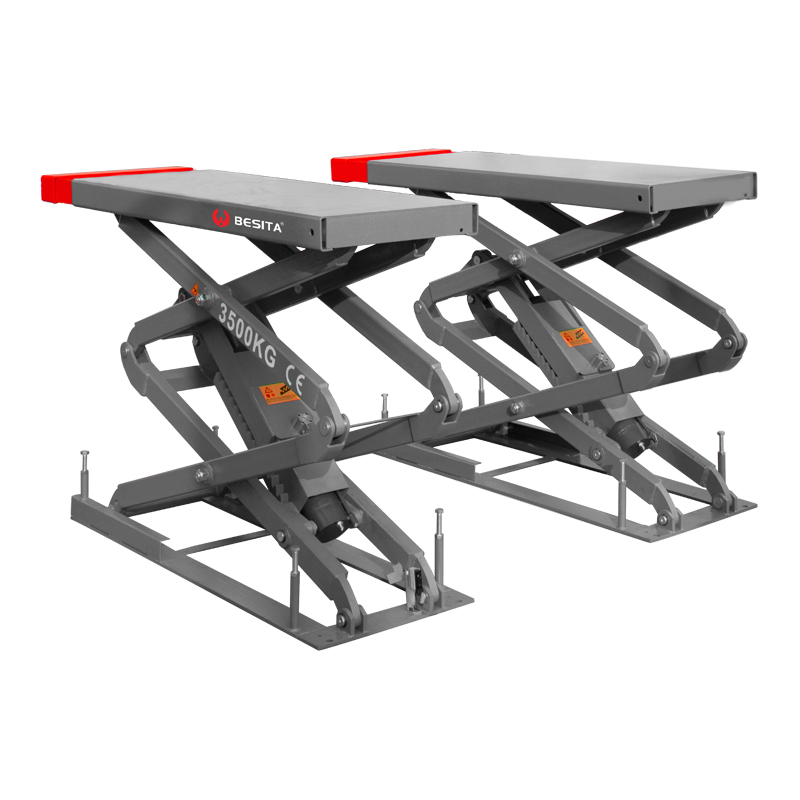

3.5T underground small scissor lift

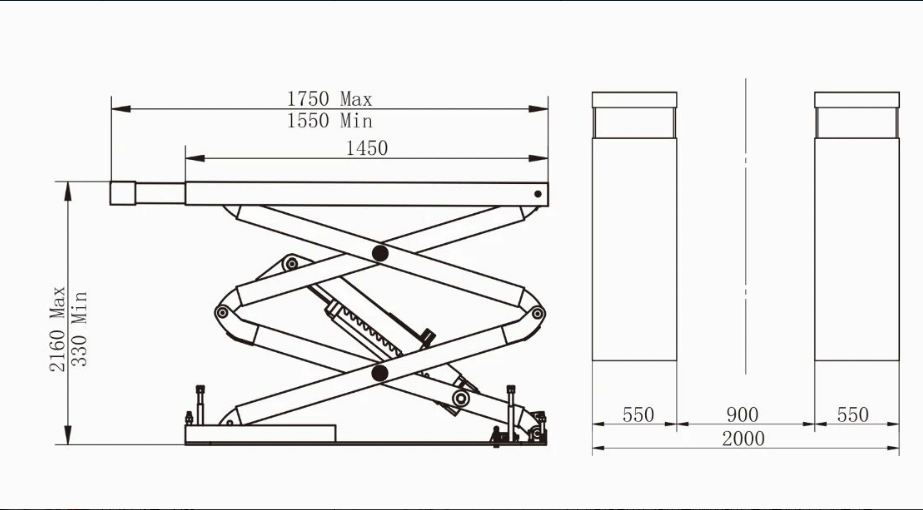

Maximum lifting weight: 3500kg
Maximum lifting height: 2160mm
Upper table width: 550mm
Upper table spacing: 900mm
Total platform width: 2000mm
Upper table length: 1450mm
Total platform length: 1750mm
Platform initial height: 330mm

●Rated load 3500Kg, easily passed 120% dynamic and 150% static load professional test standards.
●Adopt hidden scissor structure, hidden installation, small space occupation, more beautiful installation.
●Stretchable platform design, suitable for more wheelbase vehicles. (Optional bilateral stretching platform)

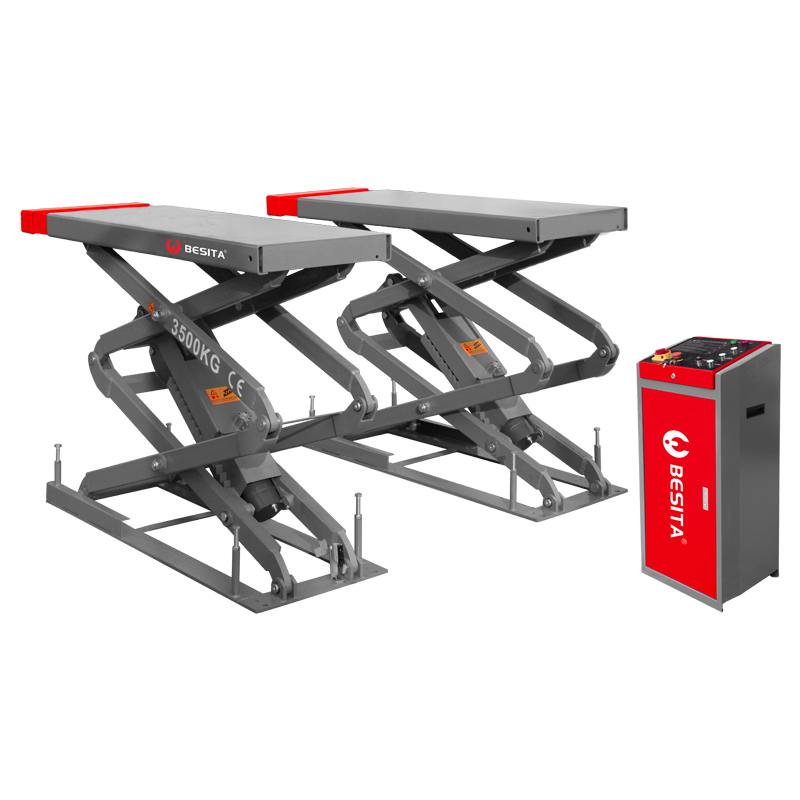

●Independent control box, low-voltage 24V safety electronic control system, good safety performance.
●With pneumatic unlocking and mechanical tooth insurance claw dual safety insurance device, safe and reliable.
●With hydraulic failure and overload safety valve protection and anti-pipe explosion device, the machine will not fall quickly when the oil pipe bursts.
●The machine descending control cabinet is equipped with signal alarm to ensure the safety of the machine operator and surrounding personnel.
●Adopt oil-free polymer super wear-resistant material sliding block, long service life, stable and reliable operation.
●Adopt high-quality hydraulic and electrical components from Italy, Germany, Japan, etc.
●With manual descending device during power outage.
●The main structural parts are welded by robots, with good welding consistency, high strength and beautiful welds.
●The structural parts are all sprayed with imported powders, sprayed with imported spraying equipment and cured at high temperature, which can ensure strong adhesion and bright and beautiful colors.
