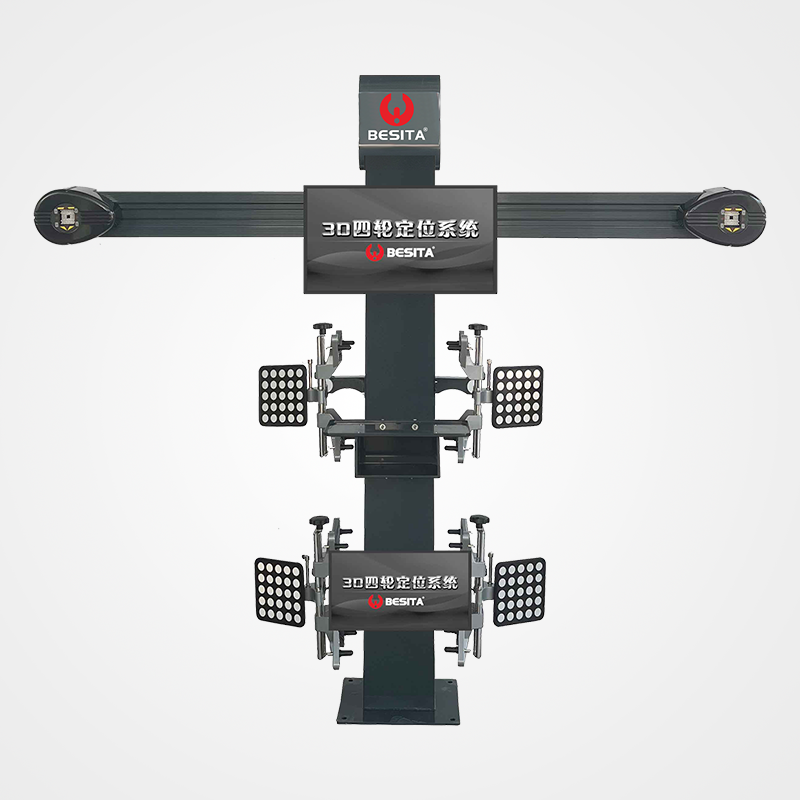

3D wheel aligner (single screen)

The camera system uses a 5-megapixel high-definition pixel camera
Measuring range and accuracy:
Parameter Measurement accuracy Measurement range
Camber angle ±0.01° ±8°
Caster angle ±0.03° ±19°
Front wheel inclination angle ±0.02° ±19°
Toe-in ±0.01° ±2°
Rear wheel advancement angle ±0.02° ±2°
Rear axle deflection ±0.02° ±2°
Wheelbase difference ±0.02° ±2°
Front setback angle ±0.02° ±2°
Retraction angle ±0.02° ±2°
Wheelbase ±0.64cm <265cm
Wheelbase ±0.64cm <533cm

1. The latest research and development of IoT cloud diagnostic technology breaks through industry bottlenecks and takes the lead in entering the era of IoT. (Supports Apple and Android dual systems)
2. Intelligent data analysis can prompt problems such as tire damage, deviation, steering wheel alignment, etc.
3. The automatic compensation function of the fixture is the first in the industry. Solve the problem of wasting time in removing hub caps.
4. The 3D field of view is adjustable to solve the problems of ultra-long, ultra-wide and ultra-narrow vehicles.
5. In addition to supporting conventional dynamic cart measurements, it also supports two dynamic measurement methods: rotating tire measurement, rotation, and target measurement, which solves the problem of the lift being not long enough to push the cart.
6. It can measure toe, camber, kingpin caster, kingpin inclination, wheelbase, wheelbase, thrust angle, diagonal distance between two wheels, setback angle, shaft deflection, wheel deflection and more than ten angles. Provide more reference points for the master, a real chassis maintenance expert.
Standard configuration: 1 beam, 1 column, 4 four-wheel clamps, 1 steering wheel holder, 1 brake holder, 1 32-inch monitor, 1 keyboard and mouse set, 1 standard printer, sheet metal parts 1 hat.
