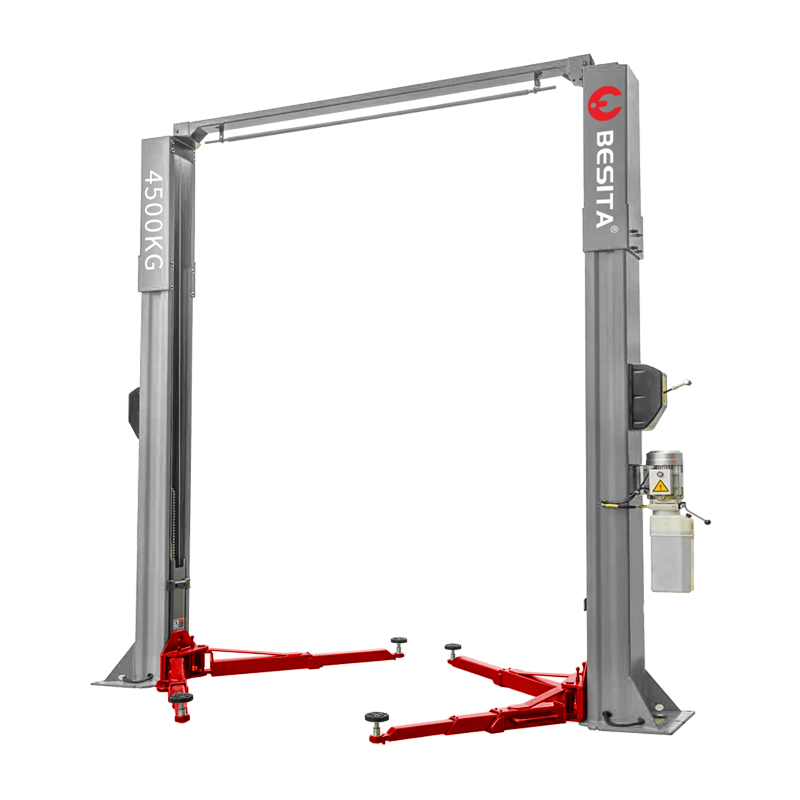

4.5T gantry double column lift
Contact Us
Present your request and we will respond as soon as possible
Maximum lifting weight: 4500kg
Maximum lifting height: 1820mm
Total height: 3800mm
Total width: 3604mm
Traffic width: 2725mm
Shortest front rocker arm size: 580mm
Longest front rocker arm size: 1140mm
Shortest rear rocker arm size: 900mm
Longest rear rocker arm size: 1430mm
Minimum support plate height: 110mm
Total width inside the column: 3000mm
Lifting limit height: 1820mm
Motor performance: 2.2kw
Lifting time: 50S
1. The column adopts a 14-bend design, which greatly improves the strength and makes heavy loads safer.
2. Gantry double-column lift, rated load 4500 kg, suitable for sheet metal machine repair and other workstations
3. Single-sided manual unlocking, convenient and fast; inverted cylinder
4. Aluminum shell motor is selected, with fast heat dissipation and high efficiency
5. After strict CE certification test, 120% dynamic loading test, 150% static loading test
6. Main body 7012 gray/slide + rocker arm 3517C red; pump station installation is located outside the main column pump station
