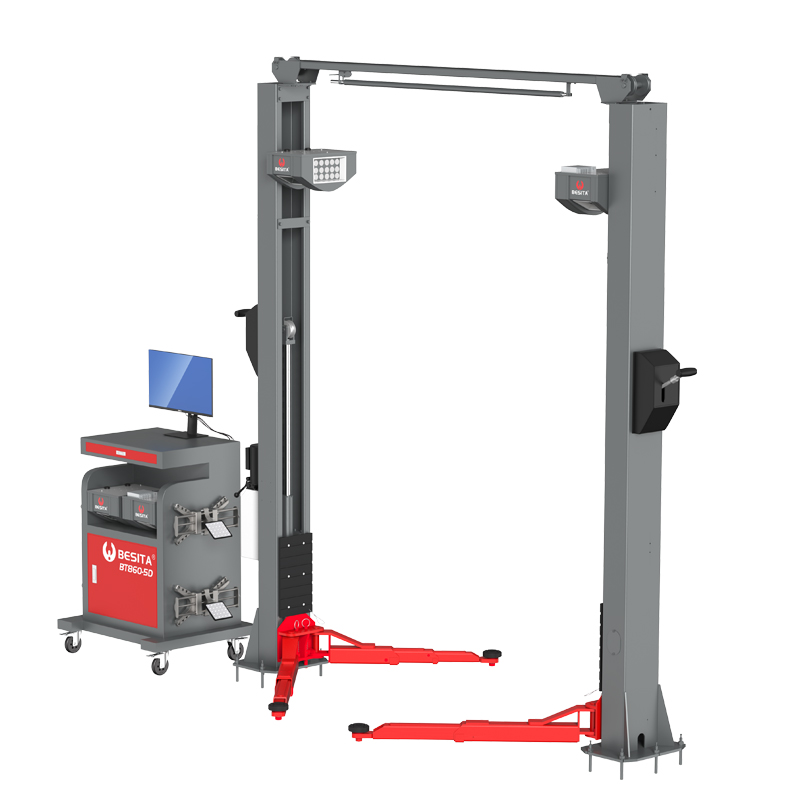

5D Wheel Alignment

The camera system uses a 5-megapixel high-definition pixel camera
Measurement range and accuracy:
Parameter Measurement accuracy Measurement range
Camber angle ±0.01° ±8°
Cast angle ±0.03° ±19°
Front wheel inclination angle ±0.02° ±19°
Toe-in ±0.01° ±2°
Rear wheel thrust angle ±0.02° ±2°
Rear wheel axle runout ±0.02° ±2°
Wheel track difference ±0.02° ±2°
Front setback angle ±0.02° ±2°
Rear setback angle ±0.02° ±2°
Wheel track ±0.64cm <265cm
Wheelbase ±0.64cm <533cm

1. Cloud 5D is suitable for any lifting platform (two-post/small scissor/four-post/large scissor lift), solving the limitation that traditional 3D lifting platforms can only use large scissor/four-post.
2. Four cameras scan the wheel angle changes of the whole vehicle to make the measurement more accurate.
3. The middle camera monitors horizontally to solve the problem of data measurement accuracy deviation caused by the deformation of the traditional 3D beam.
4. Cloud 5D does not require calibration, solving the problem of periodic calibration of traditional 3D.
5. The camera field of view can be adjusted freely, solving the problem that traditional 3D over-long, over-wide, and over-narrow vehicles cannot be measured.
6. Cloud 5D comes with WiFi connection and can connect to any mobile communication device.

Standard configuration: wireless printer, display, cabinet, head, tablet computer, target, wedge block four-claw wheel clamp, mounting assembly, steering wheel/brake plate fixing bracket.

Note: 1. The scissor lift needs to be equipped with its own hanger;
2. Corner plate is not included.
