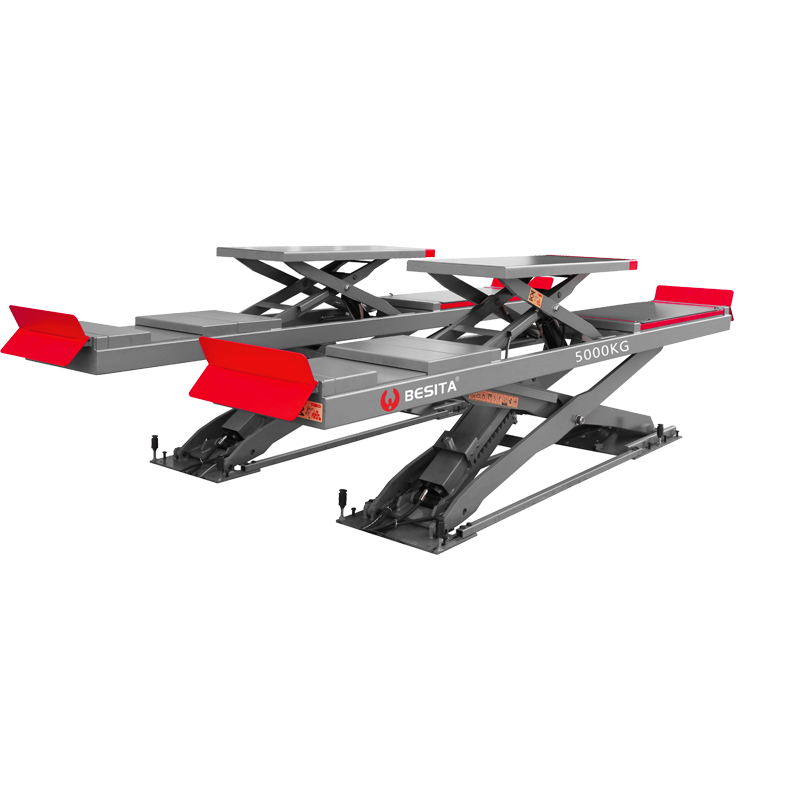

5T underground scissor lift
Contact Us
Present your request and we will respond as soon as possible

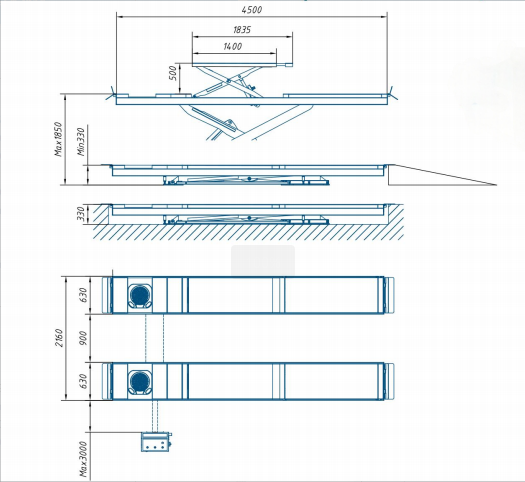

Lifting weight: 5000kg
Maximum lifting height: 1850mm
Platform initial height: 330mm
Secondary lifting weight: 3000kg
Secondary lifting platform length: 1520-1835mm
Secondary lifting height: 500mm
Platform length: 4500mm
Platform width: 630mm
Platform spacing: 900mm
Platform total width: 2160mm
Power: 3kw

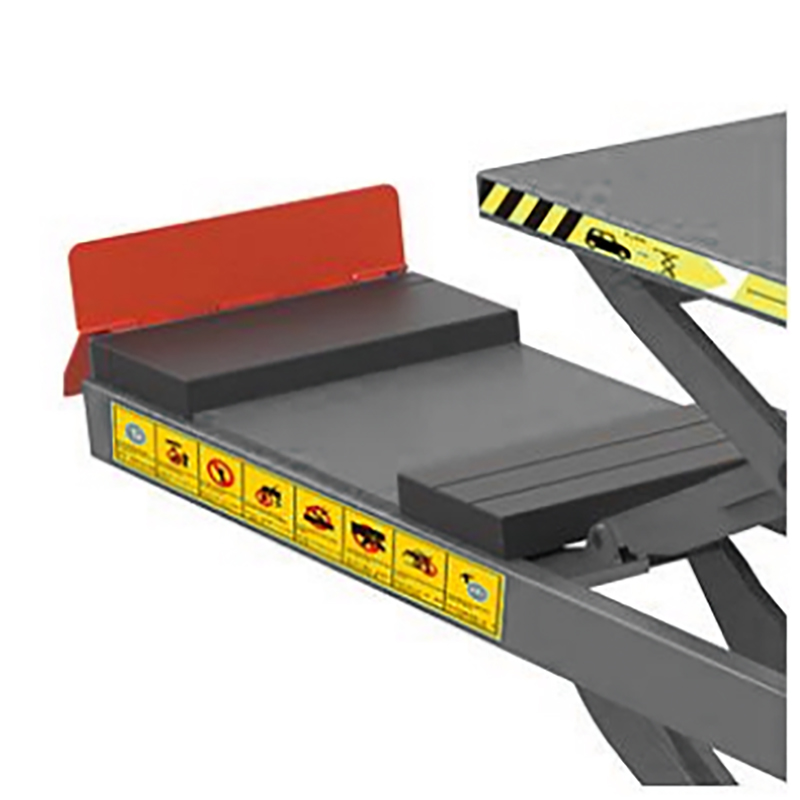

1. The position of the front wheel steering plate can be adjusted, suitable for various models.
2. A full set of cylinder seals and ball valves are imported from Italy.

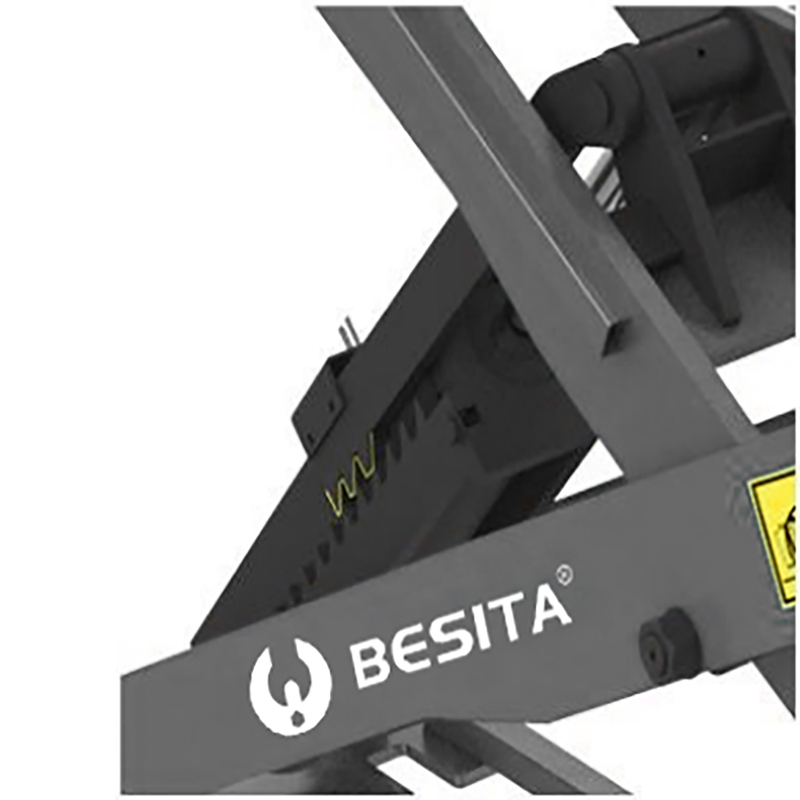

3. The hydraulic cylinder is imported from Taiwan, the inner wall of the cylinder is mirror-finished, the cylinder does not leak oil, and the synchronization of both sides is guaranteed.
4. 24v control system, 24v limit switch device.
5. The platform length is 4500mm.
6. 5 tons of lifting weight, underground design, more saving of working space.
