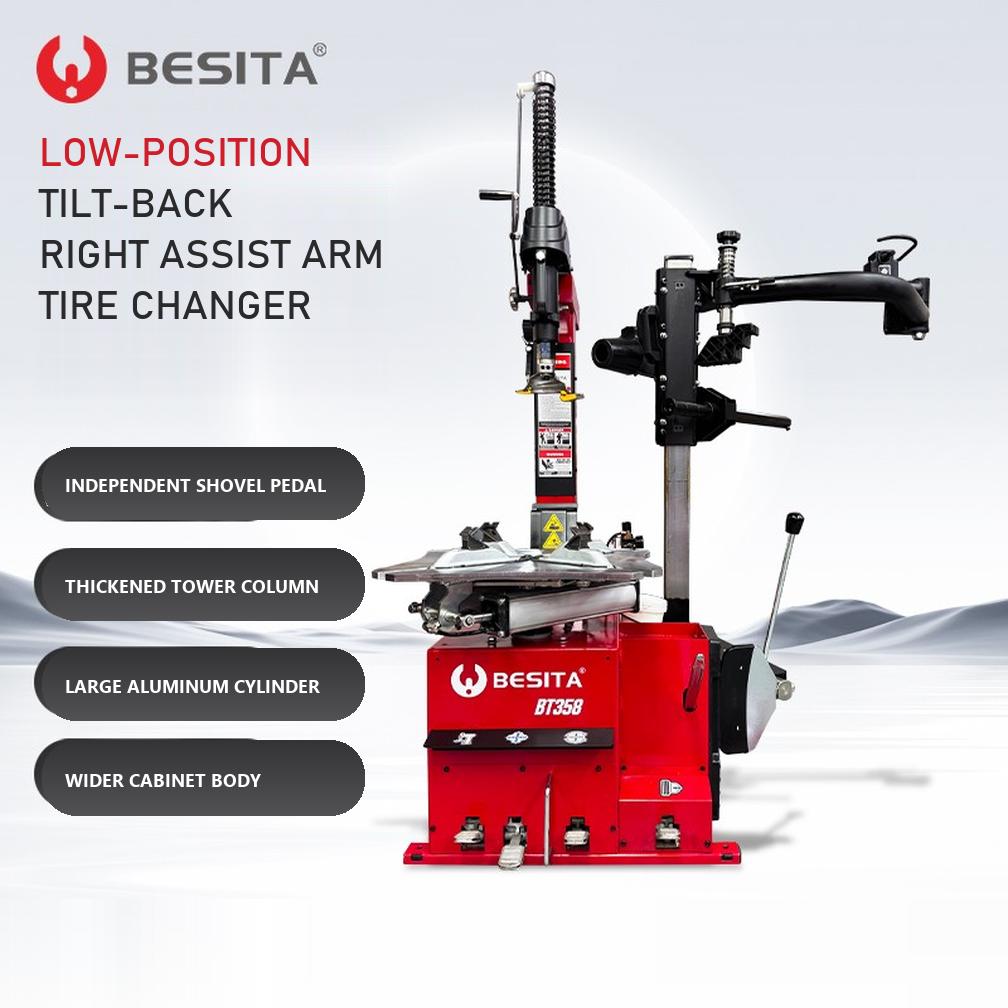

Low-Position Rear-Tilting Right Auxiliary Arm Tire Changer
Contact Us
Present your request and we will respond as soon as possible
Technical Specifications:
- External Clamping Rim Size: 12″ – 24″
- Max. Tire Diameter: 1160 mm
- Working Pressure: 8 – 10 bar
- Motor Power: 1.1 kW
- Internal Expanding Rim Size: 14″ – 26″
- Max. Tire Width: 14″
- Power Supply: 380V / 220V / 110V
Key Features :
- 26-inch Disc: The disc is 62cm from the ground, making it easy to use for operators of various heights.
- Large Cylinder: Made of pure aluminum for durability.
- 45mm Hexagonal Bar: Solid hexagonal bar for the main arm.
- Push-Pull Arm: Features a 55mm square bar.
- Independent Pedal for the Bead Breaker: Separate foot pedal for better control.
- Widened Cabinet: Extra-wide base cabinet for enhanced stability.
- Independent Large Bead Breaker Pedal
- Double-layer Thickened Tower Column: Heavy-duty double-spliced tower column for maximum strength.

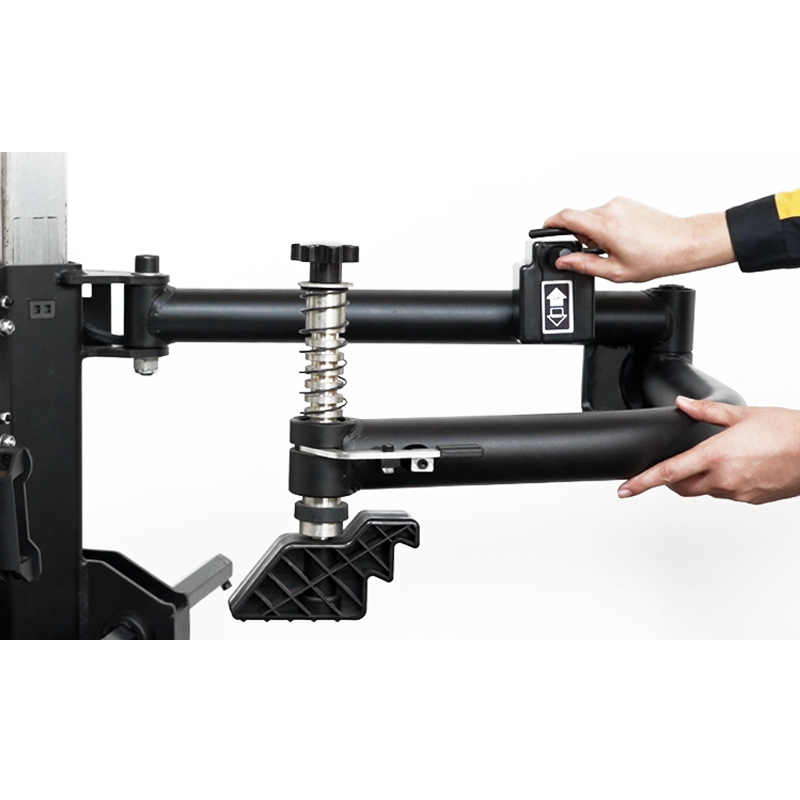

- 3-Point Down-pressing Assistant Arm: Reinforced 3-point down-pressing auxiliary arm.
- Anti-pinch Quick Bead Breaker: Quick-release bead breaker with anti-pinch design.
Specifications :
- Net Weight / Gross Weight: 340 kg / 380 kg
- Machine Dimensions: 1600 x 1100 (1600) x 1910 mm
- Package Dimensions: 1170 x 1100 x 1730 mm
Enquire Today:
Get in touch with the TRUPCR team today for more information about this product, including pricing and availability. We look forward to speaking with you.
