Mobile Cloud 3D Wheel Alignment

The camera system uses a 5-megapixel high-definition pixel camera
Measurement range and accuracy:
Parameter Measurement accuracy Measurement range
Camber angle ±0.01° ±8°
Cast angle ±0.03° ±19°
Front wheel inclination angle ±0.02° ±19°
Toe-in ±0.01° ±2°
Rear wheel thrust angle ±0.02° ±2°
Rear wheel axle runout ±0.02° ±2°
Wheel track difference ±0.02° ±2°
Front setback angle ±0.02° ±2°
Rear setback angle ±0.02° ±2°
Wheel track ±0.64cm <265cm
Wheelbase ±0.64cm <533cm

1. Multiple installation methods are not limited by space
2. The 3D visual city can be adjusted freely to solve the problem of super-long, super-wide and super-narrow vehicles that cannot be measured by Jingtong 3D.
3. Support multiple operating platforms, and WIFI point-to-point transmission can automatically shield external interference.
4. Powerful cloud service background engine, which can be connected to IPAD/mobile phone/computer/network, supports remote vehicle adjustment and data upgrade.
5. The target is resistant to falling, and the four wheels are interchangeable. The wheel clamp claws can be plugged in and out without removing the wheel cover
6. The measurement range is wide. In addition to realizing all traditional parameters, it can also measure wheel deviation and other distance parameters.
7. The single-point fixture absorbs the wheel screws, and the micro 3D function completes the installation of 4 wheels in 4 seconds (optional)

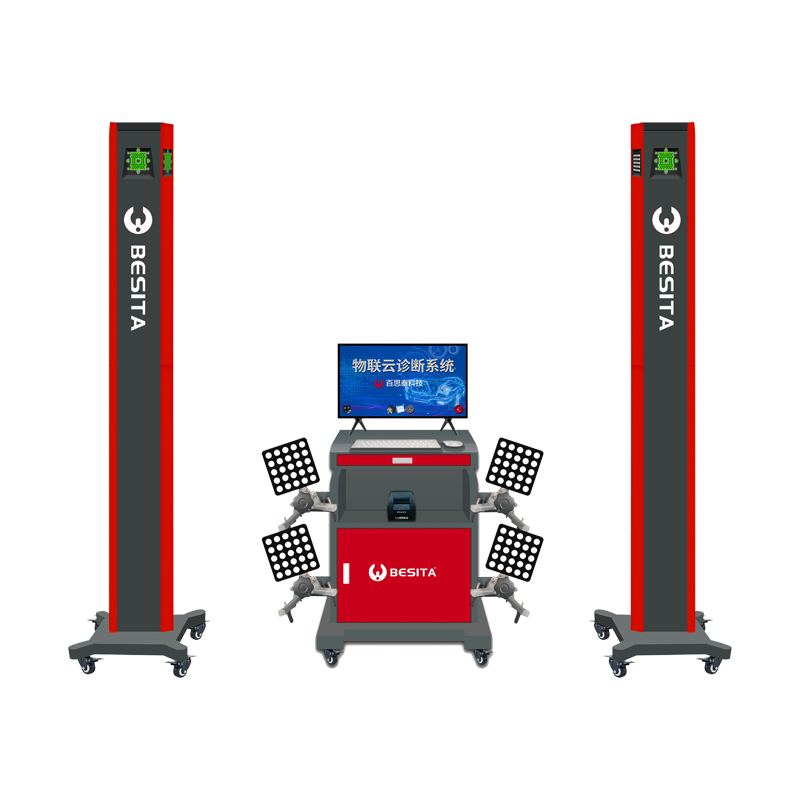

Standard configuration: head, target, column, base, cabinet, 24-inch monitor, keyboard and mouse, four-claw wheel clamp, corner plate, steering wheel/brake plate fixing bracket
