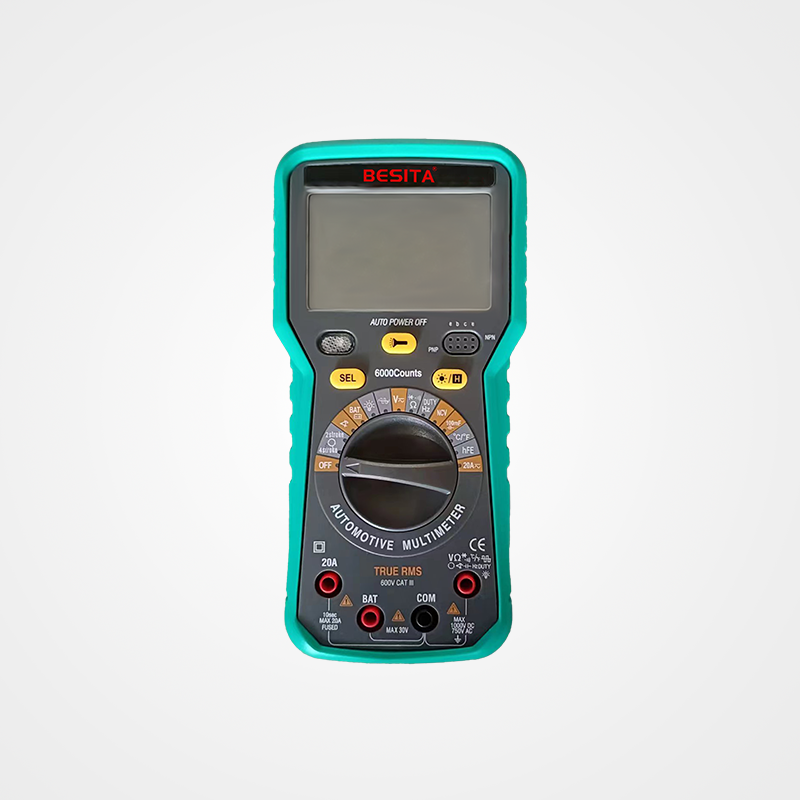

New Energy Multi-meter
Contact Us
Present your request and we will respond as soon as possible
Max Reading : 5999 ;
Automatic range ;
DC Voltage Range ± Basic Accuracy : 6V ±(0.5%+3), 60V ±(0.5%+3),600V ±(0.5%+3),1000V ±(0.8%+3) ;
AC Voltage Range ± Basic Accuracy : 6V ±(0.5%+3), 60V ±(0.5%+3),600V ±(0.5%+3),700V ±(1.2%+3) ;
DC Current Range ± Basic Accuracy : 20A ±(2%+5) ;
AC Current Range± Basic Accuracy : 20A ±(2%+5) ;
Resistance Range ± Basic Accuracy : 600W ±(0.8%+3), 6kW ±(0.8%+2), 60kW ±(0.8%+2), 600kW ±(0.8%+2), 6MW ±(0.8%+2),60MW ±(1%+5) ;
Capacitance Range ± Basic Accuracy : 6nF ±(5%+3), 60nF ±(5%+3), 600nF ±(3%+3), 6uF ±(3%+3), 60uF ±(3%+3), 600uF ±(3%+3), 6mF ±(5%+3), 60mF ±(5%+3), 100mF ±(5%+3) ;
Frequency Range ± Basic Accuracy : 6Hz -10MHz ± (0.5%+3) ;
Duty Ratio Range ± Basic Accuracy : 0 -100.0% ± (1.2%+2) ;
Dwell Angle Range ± Basic Accuracy : 0 -180° ± (1.2%+2) ; 0 -90.0° ± (1.2%+2) ; 0 -60.0° ± (1.2%+2) ;0 -45.0° ± (1.2%+2) ;
Rotate Speed Range ± Basic Accuracy : 500 -15000 r / min ± (1.2%+2) ;
The backlight function is suitable for operation under dark light ；
LCD: 63*40mm large screen, high contrast, full symbol display, word height 25mm, clear and nice ;
Outer Size : 180*88*53 mm ;
Weight : About 359 g ( Within Battery, Protective cover )
