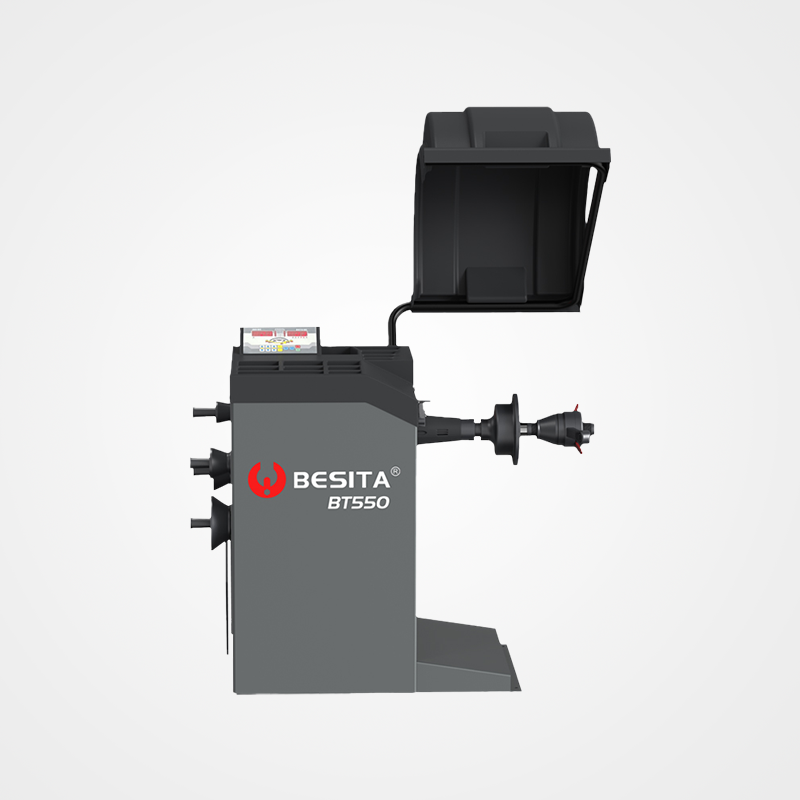

Precision tire balancer

Maximum wheel weight: 65kg;
Motor power: 0.25kw;
Power supply voltage: 220V
Balance accuracy: 1g;
Balance speed: about 260r/min;
Position accuracy: 1.5°;
Balance cycle: about 7s;
Rim diameter: 10″～26″
(256mm～660mm);
Maximum tire width: 20″
Maximum tire diameter: 1050mm
Noise: less than 70db;
Gross weight/net weight: 138kg/108kg
(Subject to actual configuration)

1. Independent intellectual property rights use new ARM microprocessors and other large-scale integrated circuits, a microcomputer system composed of digital tube display and keyboard, which is easy to maintain and low in repair costs.
2. The speed measurement and positioning system composed of photoelectric coupler and toothed disc makes the measurement more accurate and effective.
3. 2D system—automatically measure and input distance and diameter parameters. 4. Multiple balancing modes. In ALU mode, the internal pull ruler is used to clamp the lead weight to accurately and quickly find the unbalanced point.
5. Equipped with upper and lower laser indicators for easy attachment of lead blocks
6. With SPO function, it decomposes and hides the imbalance amount to the back of the tire spokes, making the wheel more beautiful.
7. With OPT function, the tire and rim can be optimally combined to save lead weight.
8. The spindle is lengthened to balance ultra-wide rims.
9. Foot brake auxiliary function at unbalanced points to facilitate fixing unbalanced points.
10. It has self-checking function.
11. Equipped with luxury tire protection cover
