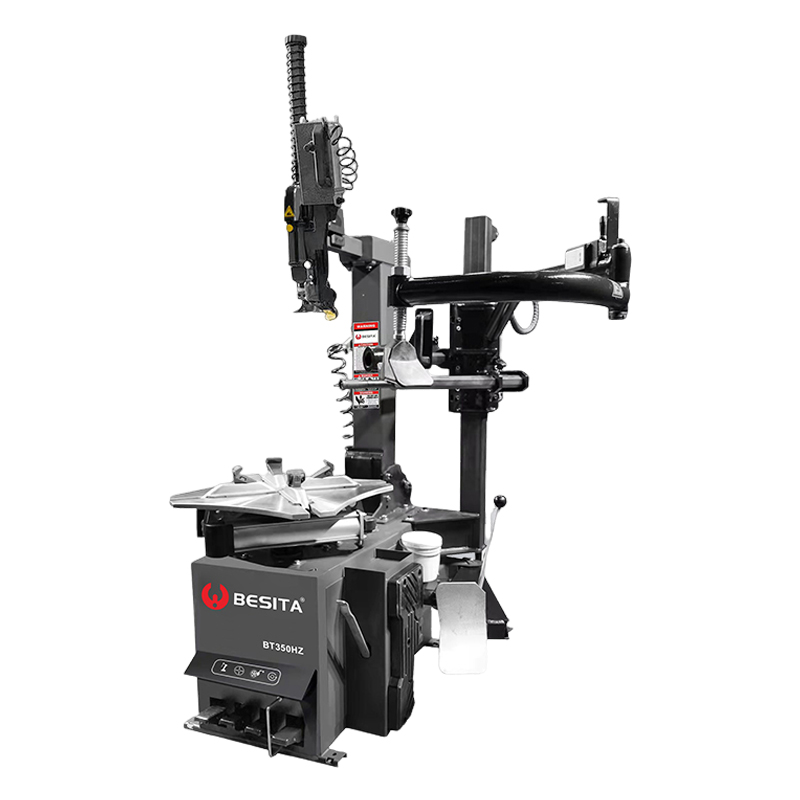

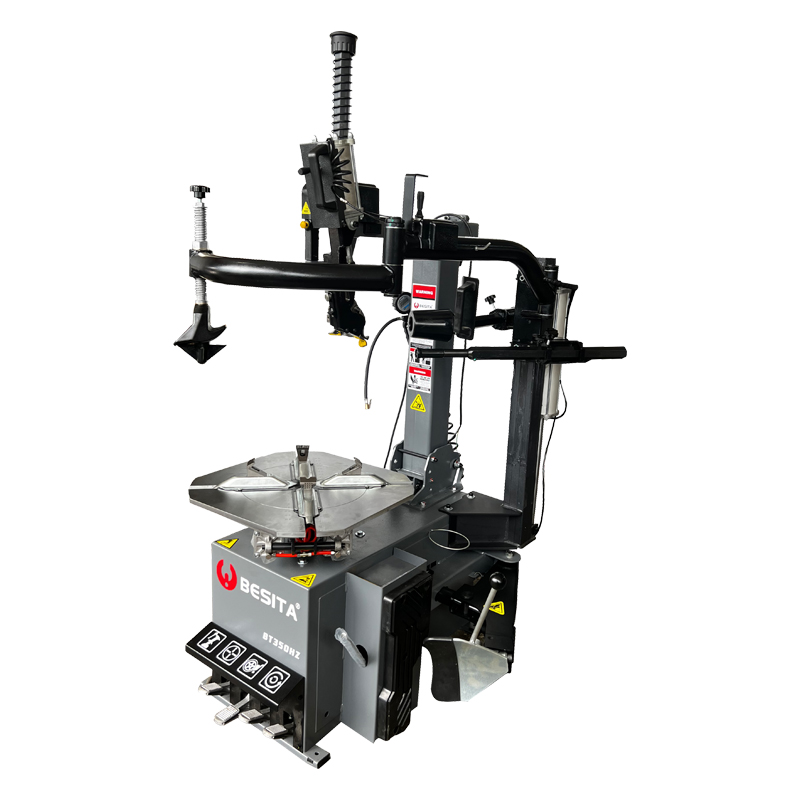

Rear tilting tire changer without crowbar

Maximum tire diameter: 1100mm (43”)
Rim size: 12-24”
Maximum tire width: 13”
Air source pressure: 8-10bar
Noise: ≤70dB
Working disc speed: 6.8rpm
Motor power: 220V: 1.1kw
380V: 0.75kw
Packaging size: 1810*980*1190mm
Weight: 362kg

1. Crowbar-free rearward tilting auxiliary arm tire dismantling machine.
2. Equipped with the latest BQC automatic tire dismantling head, 2Cr13 material, sturdy and durable, reasonable angle, safe and reliable tire dismantling.
3. Strengthen the box to reduce the shaking of the working head.
4. 380V is equipped with a low-noise motor.
5. Equipped with dismantling head gasket, claw cover, large shovel cover, more effective protection of the rim.
6. Equipped with right auxiliary arm to facilitate difficult tire dismantling.
7. The aluminum alloy foot valve assembly adopts a pull-out design, without removing the side panel of the box, which is convenient for after-sales maintenance.
8. Standard tire mouth clamp, blue dot type labor-saving crowbar, digital display air meter.
