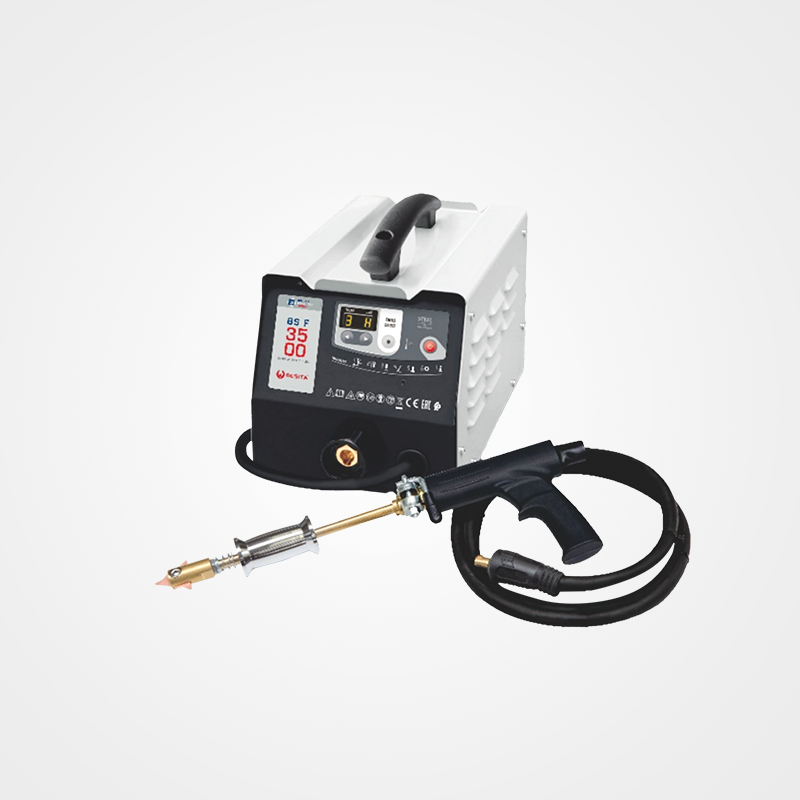

Steel car body repair system

Input voltage: 380V
Output current: 3500A
Rated power: 2KW
No-load voltage: 7.4V
Current range: 16A
Machine outer packaging: 225 X360 X235mm
Weight: 22Kg

1. The maximum input current is small, only 16A. Small input power, energy saving, saving electricity cost. (Others minimum 32A) The input power is small, reducing the load of the entire circuit, and the power utilization rate is high. Energy can be saved per hour W=380V×(32A-16A)×1H=6.08kwh. The price of industrial electricity is calculated as 1.10 yuan per kilowatt hour. Each machine can save 6.7 yuan in electricity costs for one hour of operation. Based on an average working time of 3 hours a day and 300 days a year, the electricity cost savings is about 6,000 yuan a year.
2. Each shaping machine is mainly composed of a transformer, circuit board, and control panel. The circuit board and control panel are all imported.
3. According to the maintenance of outer panels, 7 maintenance modes are set, each mode has 11 gear adjustments, the maintenance is more delicate, and the adjustment function is simple and clear. We set according to the thickness of the board (0.3-1.3MM).
4. Add high-point flameout function (mode 3 saves consumables;
5. With automatic induction system, the welding starts automatically after 0.5 seconds after the meson comes into contact with the sheet metal. There is no need to pull the wrench, reducing the probability of maintenance.
6. Advanced digital control panel allows you to select different mesons and adjust the power intensity. Full-featured yet easy to use.
7. The main unit is light in weight and small in size, and is equipped with a liftable handle and split design.
8. Equipped with an inertial hammer made of copper, which has better conductivity, saves energy, ensures welding effect, and improves work efficiency.
